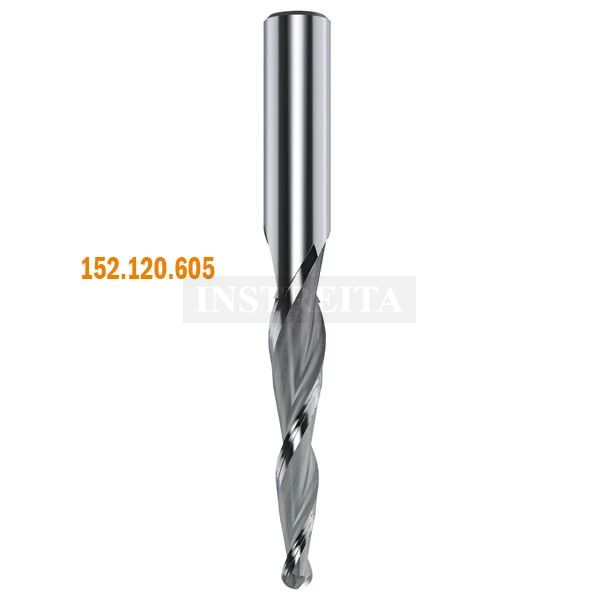

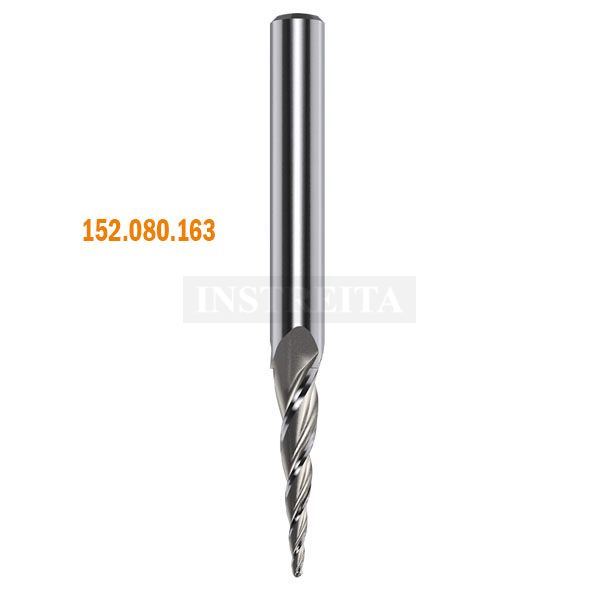

Kotinė sraigtinė graviravimo freza, serija 152

Kotinės frezos

Klausti

Pristatymas nurodytu adresu - nuo 0 iki 2 darbo dienų.
Atsiėmimas Klaipėdoje - nuo 0 iki 2 darbo dienų.
Atsiėmimas Šiauliuose - nuo 0 iki 2 darbo dienų.

Frezų galandinimo paslauga

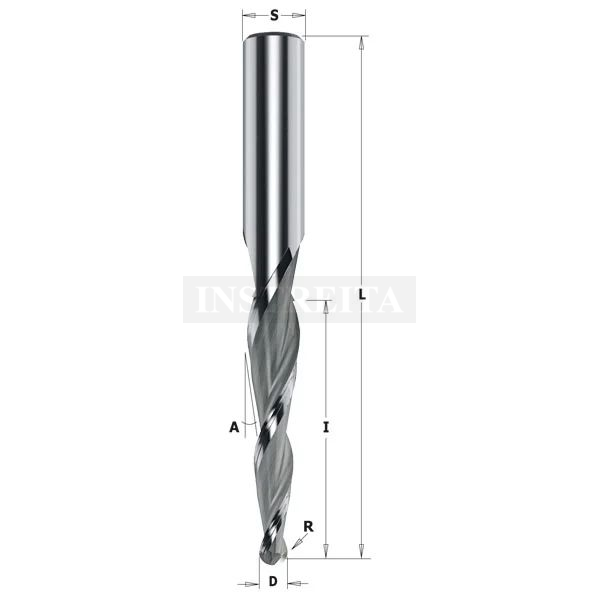

Išorinis diametras, D: 2 mm; 6 mm; 3,2 mm

Darbinis ilgis, I: 30 mm; 50 mm; 25 mm

Bendras ilgis, L: 70 mm; 90 mm; 100 mm; 80 mm; 120 mm

Spindulys, R: 1,6 mm; 3 mm; 1 mm; 0.4 mm; 0.8 mm

Tvirtinimo kotas, S: 8 mm; 12 mm; 6 mm

Dantų skaičius, Z: 2 ; 3

Gamintojas: CMT

Kampas, A: 5.5 °; 4.5 °; 2.5 °; 3 °

SOLID CARBIDE UPCUT 2D/3D CARVING TAPERED BALL NOSE SPIRAL BITS

152

TECHNICAL DETAILS:
• Premium quality HWM.
• Upcut spiral cutting edges [Z2/Z3].
• Excellent finish on the lower side of the work piece.
• Upward chip ejection.

APPLICATION:

specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood for several uses like:
• A perfect bit for 3D carving
• Precision 2D and 3D large scale carving
• Great for deep profiling
• Dimensional signage
• 3D millwork
• 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
• Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials.
• IDEAL ON ALUMINUM, PLASTIC AND WOOD-BASED MATERIALS.

Application

Excellent for cutting:

• Acrylonitrile-Butadiene-Styrene (ABS)
• Acrylic
• Acrylic Stone
• Aluminum
• Brass
• Bronze
• Composite
• Copper
• Corian®
• Coroplast®
• Dibond®
• Ethafoam®
• Ethylene-vinyl Acetate Foam (EVA)
• Expanded Polypropylene (EPP)
• Expanded Polystyrene Foam (EPS)
• Extruded Polystyrene Foam (XPS)
• Fiberglass
• Fiberglass PCB Board
• Foam Board
• Graphite
• HDPE
• HDU
• 20lbs High Density Urethane
• Lexan®
• MDF/HDF
• PALFOAM™
• Phenolics
• Phenolic Composites
• Plastics
• Poly (methyl methacrylate) (PMMA)
• Polyethylene Foam
• Polylam®
• Polyurethane Foam
• PVC
• PVC Foam Board
• Sign Board
• Sign Foam
• Titanium
• Tooling Board
• Wood
• XPE (Cross Linked Polyethylene) Foam

Tips for Milling Plastics:

• pay attention to heat input.
• pay attention to chip-loads when using small diameters.
• use air-blast to keep chip away and cooling the tool.
